Fittings & Couplings · TA-EMT-COUPReplies within 2 h

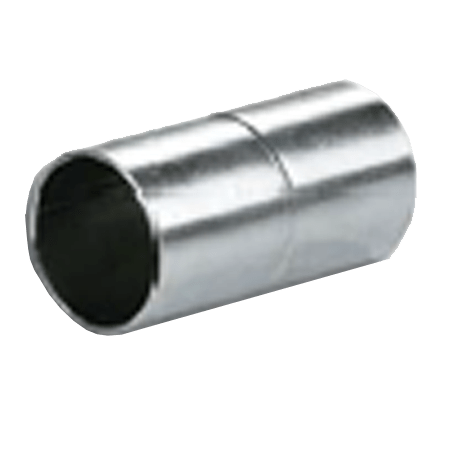

EMT Coupling TA
Push-fit steel coupling for unthreaded EMT
Connection of unthreaded pipes and bends
Available trade sizes
1/2"3/4"1"1¼"1½"2"
TA
Sales desk
Tabalsa Arabia — your dedicated rep for this product
Sizes & dimensions
| Size (Inches) | ø Outside | Min. wall thickness (mm) | ø Inside | Length (mm) | Weight (Kg/pc) |
|---|---|---|---|---|---|
| 1/2 | 20.4 | 0.95 | 18.5 | 50 | 0.025 |
| 3/4 | 26 | 1.05 | 23.9 | 54 | 0.035 |
| 1 | 32.7 | 1.15 | 30 | 64 | 0.051 |
| 1 1/4 | 41.7 | 1.25 | 38.9 | 75 | 0.092 |
| 1 1/2 | 47.7 | 1.25 | 45.2 | 95 | 0.136 |
| 2 | 59.9 | 1.55 | 56.8 | 110 | 0.245 |
Installation
Full specifications
| Product | Coupling |
|---|---|
| Material | Steel |
| Exterior surface | Electrozinc coated |
| Interior surface | Electrozinc coated |
| Thread | Unthreaded |
| Conformance | ANSI C80.3 |
| Available sizes | 1/2" · 3/4" · 1" · 1¼" · 1½" · 2" |
| Manufactured at | Tabalsa Arabia Factory — Second Industrial City, Dammam, KSA |
| Standard packaging | Bundles · cardboard cartons · pallet-strapped |
Related products
From the same family.
TA-BEND-90

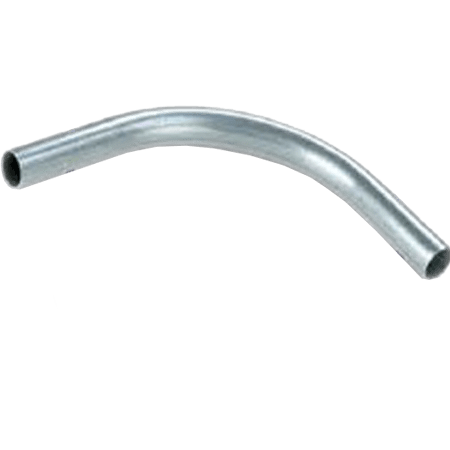

EMT Bend TA
Pre-formed 90° steel bend
EMT Bend TA
- ProductBend 90°
- MaterialSteel
- Exterior surfaceGalvanized
- Interior surfaceGalvanized
- Weld protectionMetalized Zinc
- Additional protectionAntioxidant paint
TA-SSC-COUP

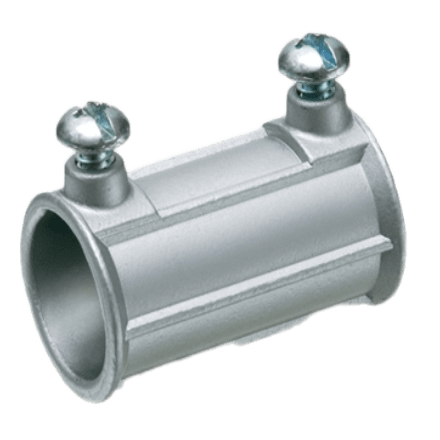

EMT Set Screw Coupling
Zinc die-cast, in-line joiner
EMT Set Screw Coupling
- ProductSet Screw Coupling
- MaterialZinc die cast
- Specification referenceUL 514B
- UL file numberE475276
TA-COMP-COUP

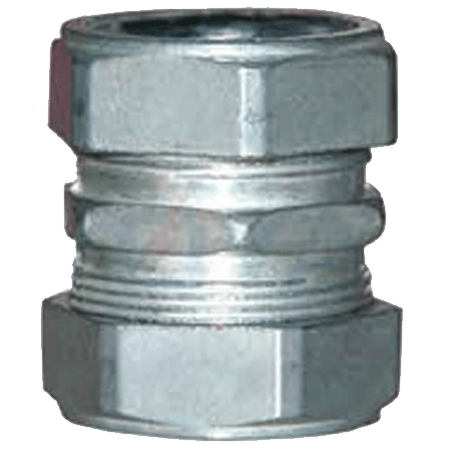

EMT Compression Coupling
Zinc die-cast, compression joiner
EMT Compression Coupling
- ProductCompression Coupling
- MaterialZinc die cast
- Specification referenceUL 514B
- UL file numberE475276
